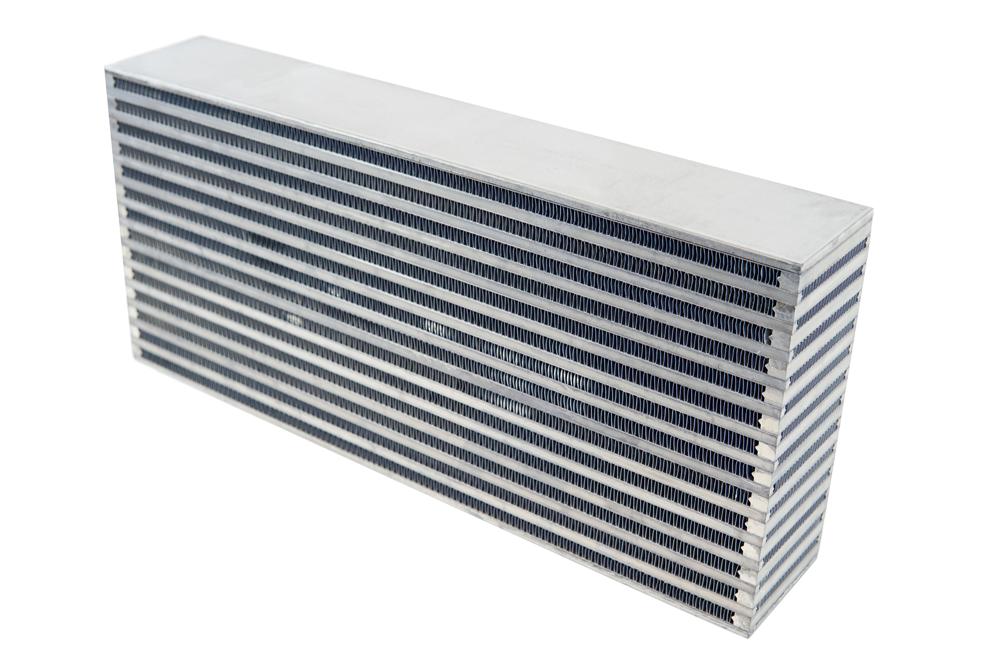

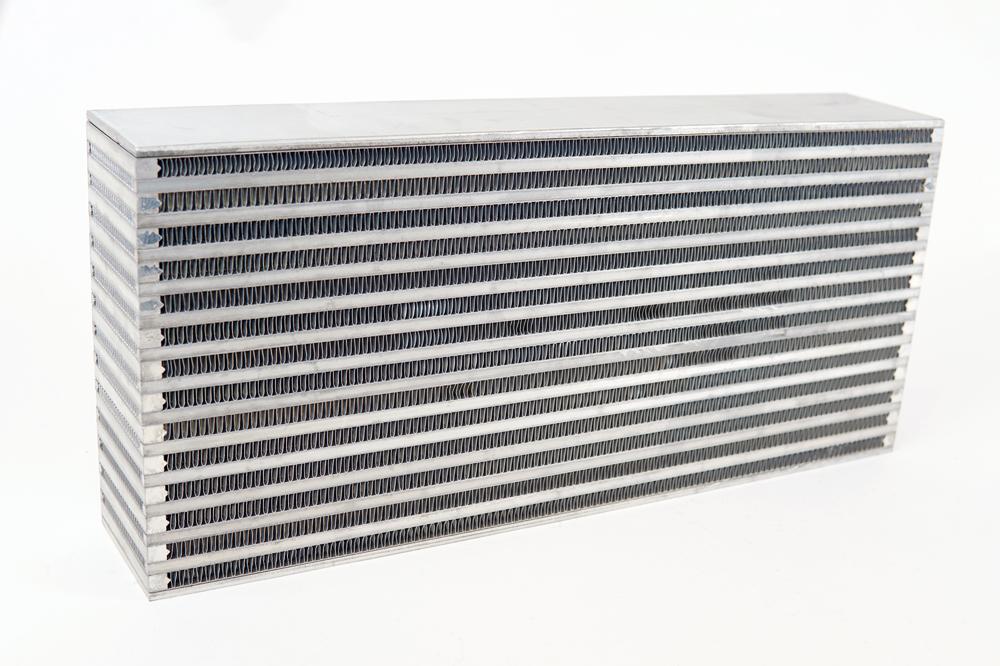

CSF High-Performance Bar & plate Intercooler Core 22x10x4
CSF High-Performance Bar & plate Intercooler Core 22x10x4

CSF Intercooler Core 22x10x4 - Bar & plate

Need installation?

Pairs well with

CSF Intercooler Core 22x10x4 for the Bar & plate.

About CSF intercoolers

A CSF intercooler cools the charge air after the turbo, and cooler charge air means denser air and less heat soaked into the inlet. CSF build theirs in aluminium with a bar and plate or tube and fin core depending on the application, sized to the car rather than oversized for the look of it.

They fit in the factory location and use the original mounting points, so nothing has to be cut.

CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This Horizontal Flow Core is rated for 900 WHP and the perfect fit for your custom high-performance intercooler.

Specification

  • Heavy-Duty Bar & Plate Intercooler Cores
  • Pressure Tested at 120psi for Maximum Reliability in Extreme Boost Applications
  • Hand-Built Using Jigs & Fixtures for a Perfectly Straight Core for Easy Welding
  • Manufactured by Hand in a Clean Room Using Gloves Inside the CSF Cooling Factory to Ensure Proper Brazing and a Clean Surface for Future Welding
  • Multi-Louvered High Precision Staggered Fin Design (for Both Ambient and Pressure Sides of the Core)
  • Batch Brazed in CSF's State-of-the-Art Digital Vacuum Brazing Oven (12 Ovens in Total)
  • Strict Quality Control and Quality Testing, Including Individual Pressure Testing
  • Individually Boxed and Protected for Secure Transport Through Single Piece Mail Services
  • Dimensions: 22"x10"x4" (560mm x 250mm x 100mm)
  • HP Rating: 900
  • Cross-flow
  • Part number 8174

What you receive

One intercooler core 22x10x4, as described above.

Please confirm fitment with us before ordering.

Shipped Australia wide, with fitting available in our workshop. CSF warranty applies.
