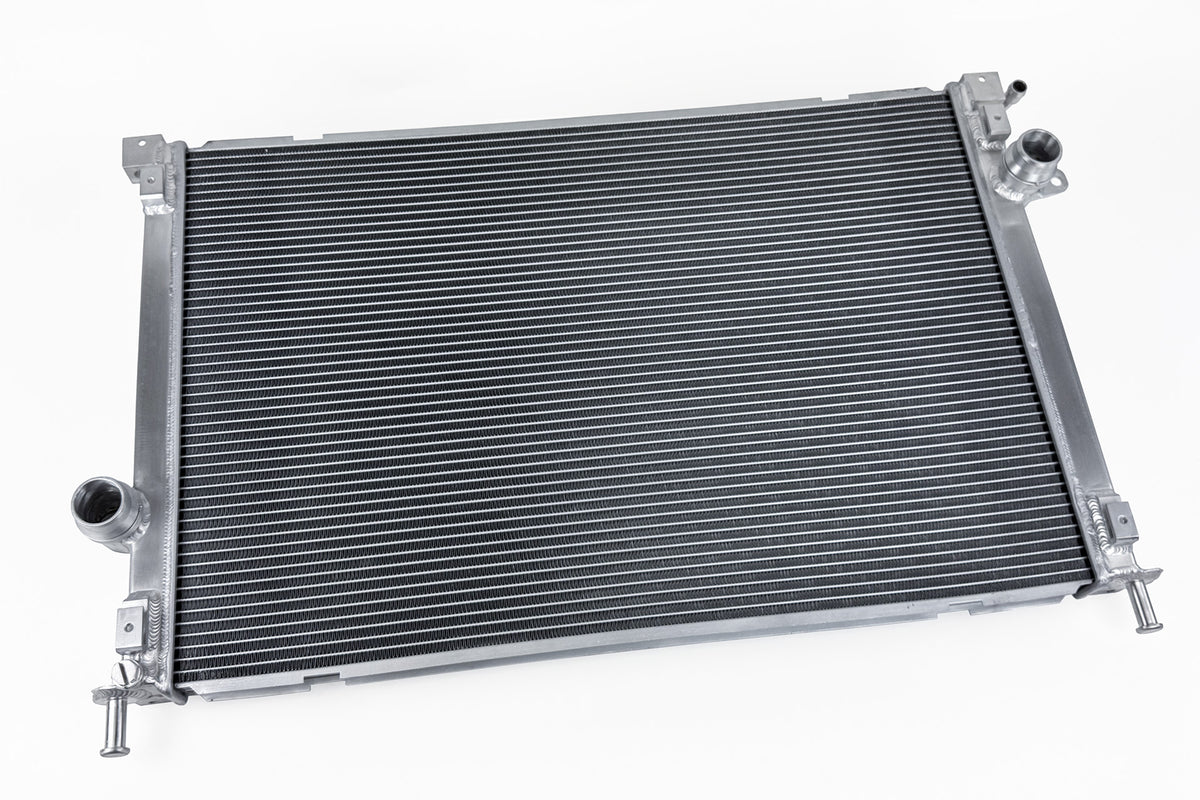

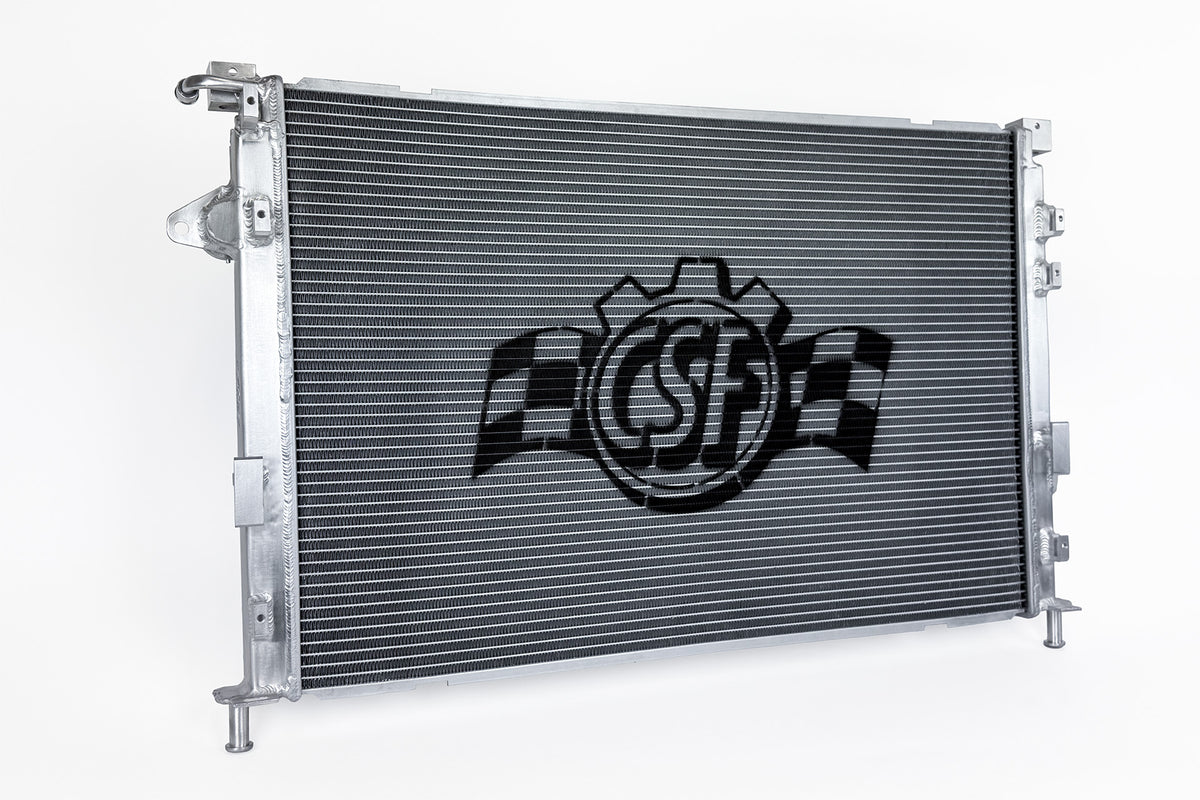

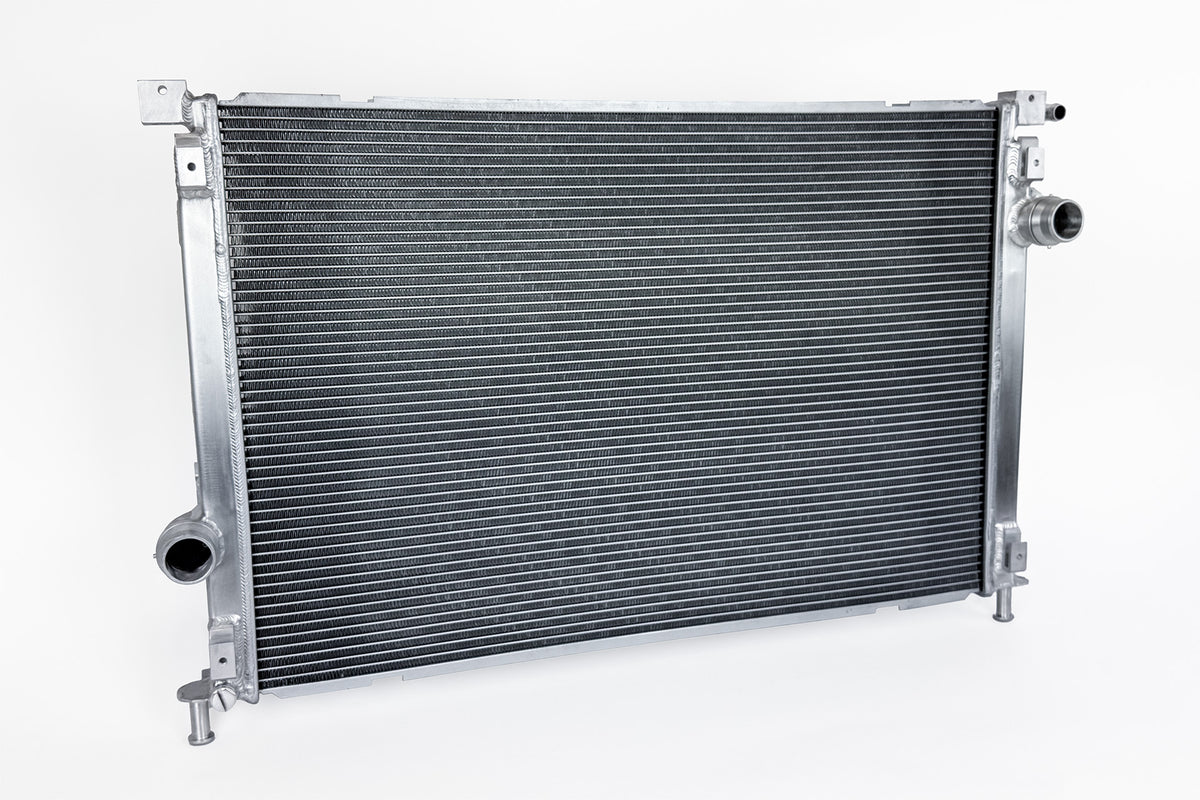

CSF All-Aluminium Radiator - MK3 Ford Focus ST

CSF All-Aluminium Radiator for the MK3 Ford Focus ST.

About CSF radiators

CSF build all-aluminium radiators that drop into the factory location and accept the original hoses, brackets, shroud and condenser, so the extra cooling comes without fabrication.

The gain comes from the core rather than from size alone: a dual row design with CSF's B-Tube construction and a high density louvred fin, which puts more surface area in front of the same airflow. On a car that climbs in temperature under load, towing or on track, that is what holds it steady.

The Focus ST was very well engineered and performed admirably out of the box. However, a few upgrades can quickly lead to heat issues, especially on the track or in hot climates. An upgraded radiator from CSF is the perfect solution to keeping the coolant temps in check.

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Focus ST running at its best, a CSF High-Performance All-Aluminium Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 1-Row 31mm core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter Aluminium material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximise airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

The CSF Focus ST radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Trust the cooling experts at CSF for the best performing, highest-quality, and most reliable radiators.

Specification

• 1-Row - 31mm Ultra-High-Performance Core
• Triple Pass Flow Configuration Allows Coolant to Flow Across the Core Three Times Before Exiting for Lowest Outlet Temperatures Possible
• Cooling Tubes with CSF's Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

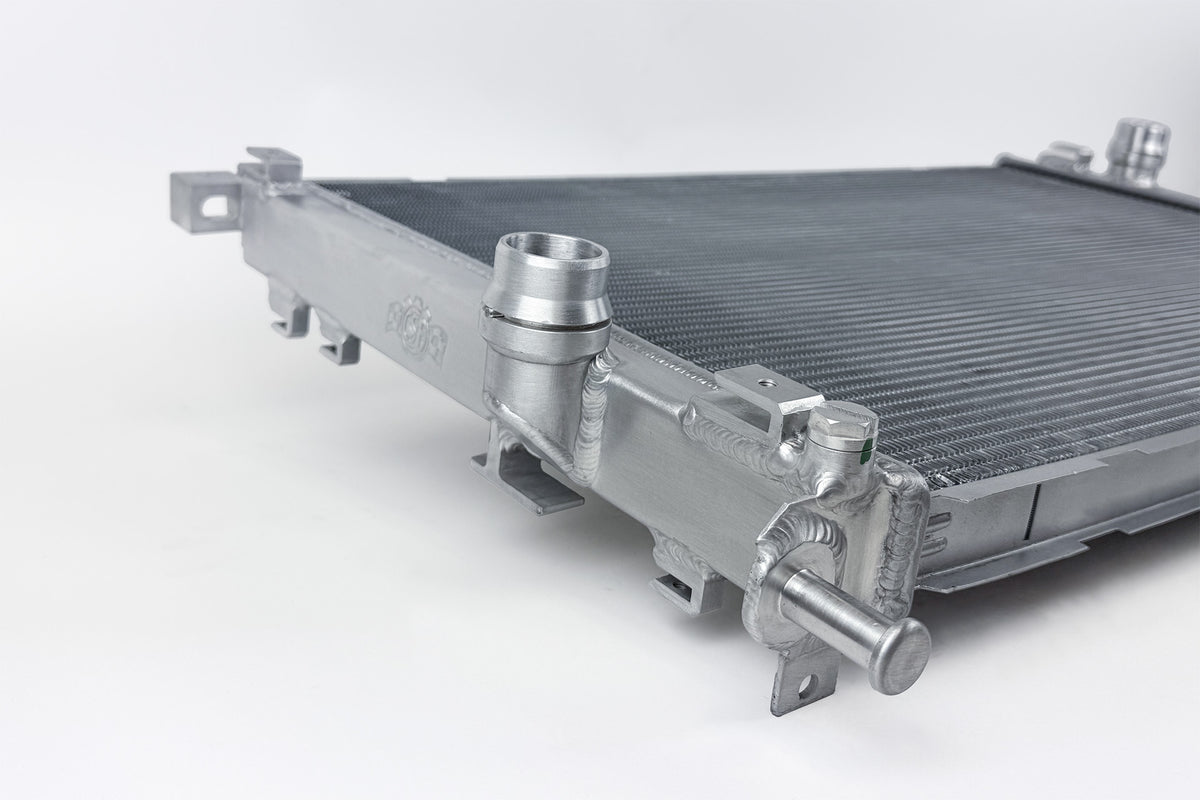

• CNC Machined Mounting Pins and Brackets

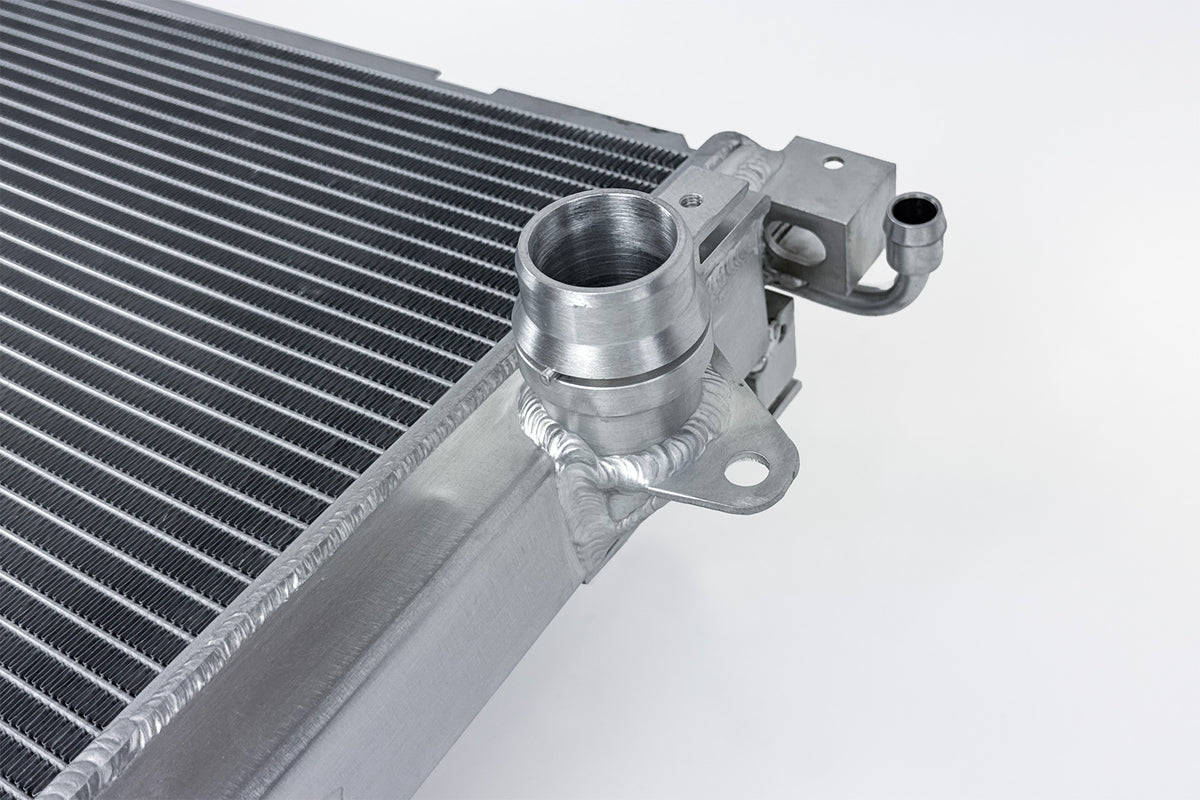

• OEM Style Inlet/Outlet
• 100% All Aluminium TIG-Welded Construction
• True Plug-and-Play "Drop-in Fit" Installation Requires No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty
• Cooling Tubes: 52, against 56 on the factory part
• Cooling Fin Rows: 53, against 57 on the factory part
• Core Thickness: 31mm, against 27mm on the factory part
• Fin Height: 6.5mm, against ~6mm on the factory part
• Core Material: Aluminium
• Tank Material: Aluminium, against Plastic on the factory part
• Construction: 100% TIG Welded, against Crimp on Gasket on the factory part
• Part number 7238

Fitment

• Ford Focus, 2015 to 2018

What you receive

One all-aluminium radiator, as described above.

Please confirm fitment with us before ordering.

Shipped Australia wide, with fitting available in our workshop. CSF warranty applies.
