Eventuri Intake System - BMW E46 M3 (Black Carbon)
Shipped Australia wide, or fitted in our Sydenham workshop
Ask the workshop on (02) 9557 3739
Eventuri Intake System for the BMW E46 M3, black carbon.
About Eventuri intake systems
Eventuri build intake systems around the Venturi principle: the filter sits in a carbon housing that narrows smoothly into the intake tube, so the air accelerates without hitting a step, a corner or a rubber join. That smoothness is what separates their systems from a cone filter on a pipe.
The housings are pre-preg carbon, which insulates the intake air from engine bay heat, and the systems are sealed and fed by ducts or a scoop so the engine draws cool air rather than hot air off the radiator.
The E46 M3 intake system is a result of extensive data logging, dyno testing and design optimisation. Our aim was to develop an intake system for the S54 engine which worked with the stock ECU map and MAF sensor and produced a genuine improvement in the driving experience.
The Eventuri Difference
The E46 M3 Eventuri system uses our Patent Pending Carbon fibre Housing which provides an aerodynamically efficient airflow path from the filter to the MAF tube. Not just another cone filter with a heat shield but a unique design which invokes the Venturi affect.
Below is a dyno graph showing the comparison between the Eventuri and the stock airbox on a standard car with just a rear exhaust and standard map. As you can see, power and torque are increased through a large portion of the rpm range not just at the peak. This translates on the road to increased part throttle and full throttle response with the car pulling much more eagerly to the redline. The testing was done on the same day back-to-back and temperatures were monitored to ensure consistency.
Although the Eventuri system does not require a remap - we have seen further gains when the E46 M3 is subsequently remapped. The graph below shows another E46 M3 with 3 curves - stock, Eventuri and then Eventuri with a remap. In this instance the car was remapped by Evolve Automotive.
Components

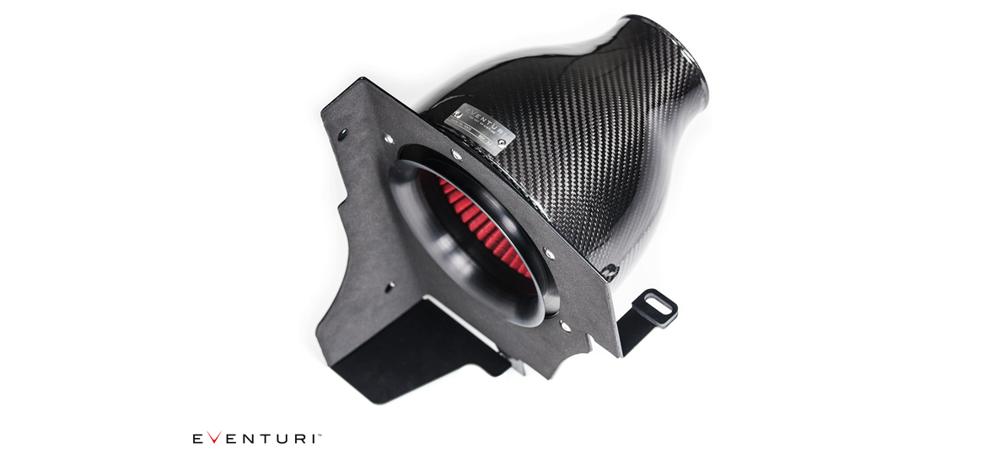

Made from 100% prepreg carbon fibre of the highest quality, the workmanship on the housing is second to none. This encapsulates the filter and is mated to an anodised aluminum inlet cowl to ensure a smooth inlet flow path. The filter itself is a deep pleated, high flow double cone configuration which is dry to avoid damaging the MAF sensor. Finally the assembly is then mated to an aluminium heat shield which effectively shrouds the intake from engine bay heat and captures the ambient air being diverted from the scoop. Also notice the rubber spacer on the mount of the heat shield - this is for the headlight module to sit on so that it remains at the right height - small details are important!

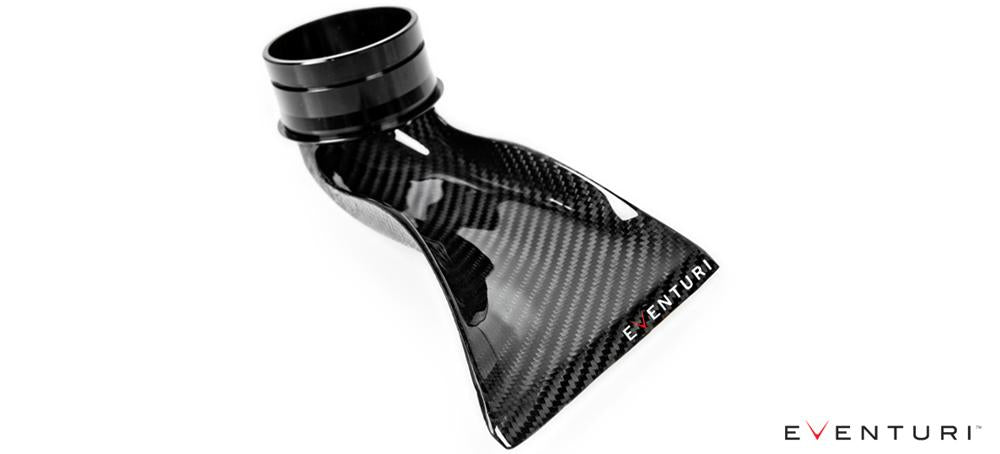

Carbon Air Scoop

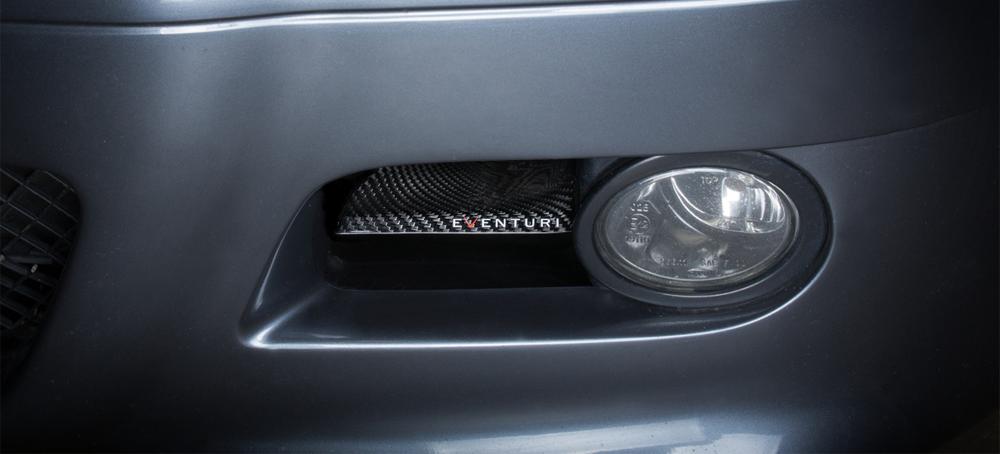

100% Prepreg carbon fibre with a CNC machined collar - the air scoop forces ambient air directly into the filter opening. This scoop simply clicks into place in the front right hand brake duct and effectively saturates the mouth of the intake with cold air. It has been designed to take up half the height of the duct in order to allow airflow to still continue through the duct for the brakes. The scoop is so effective that even after a hard drive, the aluminium cowl at the mouth of the intake will still feel cold to touch!
MAF tube
The MAF tube is CNC machined from aluminium and then anodised. The MAF boss itself is machined from an engineering plastic to minimise the heat soak into the sensor through conduction. We have incorporated a machined recess on one side to allow the OEM rubber gasket from the stock airbox to be used for a perfect seal into the stock elbow.
Heat Shields
Specification
- Finish and options: black carbon
- Pre-preg carbon fibre construction
- Sealed housing with a bespoke high flow filter
- Also available as EVE-E46-KV-INT: BMW E46 M3 Kevlar intake
- Listed by Eventuri for: BMW M3 (E46) Convertible M3 2001-2006; BMW M3 (E46) Coupe CSL 2003-2004; BMW M3 (E46) Coupe M3 2001-2006
- Part number EVE-E46-INT
Fitment
- BMW M3, 2001 to 2006

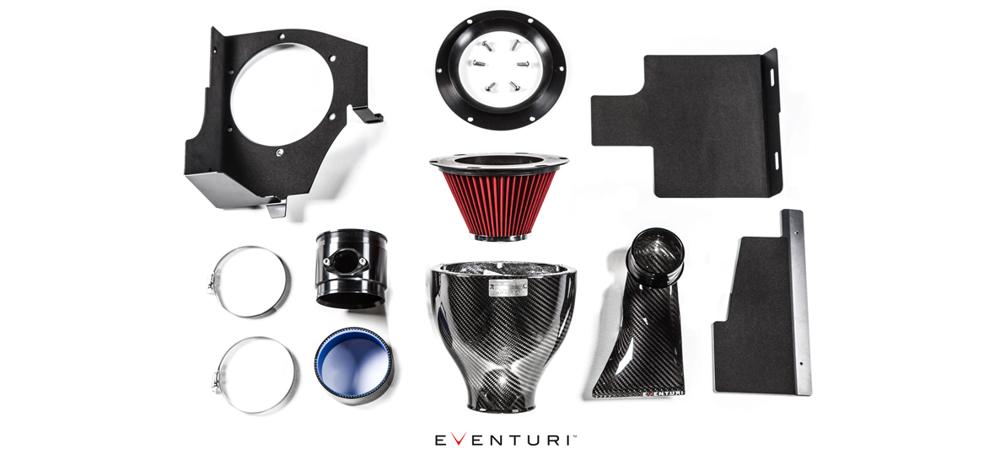

What you receive
- 100% Prepreg Carbon Fibre Intake Housing
- Anodised Aluminium inlet cowling
- High Flow Filter
- CNC Machined MAF tube
- 100% Prepreg Carbon Fibre Air Scoop with CNC machined aluminium collar
- 3 Aluminum heat shields
- High quality Silicon coupler with BMW specification hose clamps
- Carbon Intake Housing Assembly
